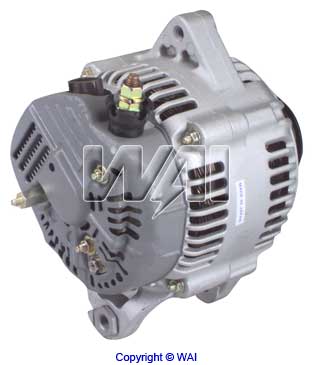

WAI 1-2085-01ND Alternator
Alternator - Nippondenso IR/IF
110 Amp/12 Volt, CW, 5-Groove Pulley | 配件名称: | WAI编号: | 零件所在位置: |
| Brush Holder Assy, Alt | 39-8203-3 | |
| Repair Ring, Slip Ring | 28-82850 | |
| Sleeve, Packaging | 89-916 | |
| Bearing, Ball | 10-2021-4W | FRAME, SRE |
| Bearing, Ball | 10-3042-4W | FRAME, DE |
| Brush, Alt | 38-8201 | |
| Cover, Alt | 46-82700 | BEARING, SRE |
| Cover, Alt | 46-82400 | BRUSH HOLDER ASSY, ALT |
| Frame, DE, Alt | | |
| Retainer, Bearing, Alt | 46-82500 | |
| Screw | 85-1208 | |
| Slip Ring, Rotor | 28-82853 | |
| Spring, Brush, Alt | 39-82700 | |
| Stator | | |
| Thru Bolt | 85-1403 | |
| Bushing, Mounting, Alt | | FRAME, SRE |
| Connector, Alt | 46-82300 | RECTIFIER |
| Cover, Alt | 46-82470 | FRAME, SRE |
| Frame, DE & Stator Assy | | |
| Frame, SRE | | |
| Gasket, Alt | 41-82101 | BRUSH HOLDER |
| Grommet, Alt | 41-82302 | STATOR |
| Insulator, Alt | | RECTIFIER |
| Nut | | COVER, SRE |
| Nut | 85-2300 | COVER, SRE |
| Nut | 85-2300 | SHIELD, HEAT |
| Nut | 85-2300 | THRU BOLT |
| Nut | 85-2407 | TERMINAL, BATTERY |
| Nut | 85-2601 | PULLEY |
| Pulley | 24-82271 | |
| Rectifier | INR733P | |
| Regulator, Alt | IN441 | |
| Rotor | | |
| Screw | 85-1316 | CONNECTOR |
| Screw | 85-1205 | BRUSH HOLDER |
| Screw | 85-1205 | LEAD, STATOR |
| Screw | 85-1210 | REGULATOR |
| Seal, Alt | 41-82306 | BRUSH HOLDER |
| Shield, Heat, Alt | | COVER, SRE |
| Washer, Spring | 46-82802 | FRAME, SRE |
