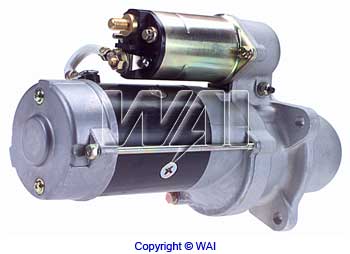

WAI 50-8404 Starter

WAI 50-8404 Starter

Starter - Delco 28MT Series
12 Volt, CW, 10-Tooth Pinion
Post Buying Request Connecting Buyers Width China Suppliers
Big Picture

Similar Products

441126

ALANKO 441126 Starter

S0254

AS-PL S0254 Starter

110182

HC-Cargo 110182 Starter

220262

MESSMER 220262 Starter

18394N

WAIglobal 18394N Starter

640.001.103

CV PSH 640.001.103 Starter

600000170370

MAGNETI MARELLI 600000170370 Starter

8EA 737 919-001

HELLA 8EA 737 919-001 Starter

LRS02643

LUCAS ELECTRICAL LRS02643 Starter

0 001 314 034

BOSCH 0 001 314 034 Starter

66925210

PRESTOLITE ELECTRIC 66925210 Starter

D7R24

VALEO D7R24 Starter
     配件名称:WAI编号:零件所在位置:
        Armature, Str61-8400
                                Grommet, Str71-84300
                                Insulator, Str 72-84100
                                Insulator, Str 72-84400
                                Insulator, Str72-84101
                                Lead, Field Coil 76-84600
                                Nut85-2401
                                Terminal Post, Str76-84550
                                Washer, Lock84-4402
                                Washer, Plain84-4405
                        Cap Assy, Soln
                        Contact, Movable, Soln66-84650
                        Field Coil, Str59-8400-2
                        Insulator, Soln66-84400
                        Insulator, Str72-84101
                        Nut85-2300S-TERMINAL
                        Nut85-2500BATTERY TERMINAL
                        Retainer, Soln66-84750
                        Retaining Ring66-84751
                        Screw 85-1356CAP ASSY, SOLN
                        Sleeve, Insulating
                        Spring, Contact, Soln
                        Terminal Kit, Str79-84500
                        Washer, Insulating66-84401
                        Washer, Lock85-4500BATTERY TERMINAL
                        Washer, Plain
                Boot, Str71-84103
                Brush, Str68-8401FIELD
                Brush, Str68-8400GROUND
                Bushing, Str62-84503PINION
                Bushing, Str62-84500HOUSING, DE
                Commutator, Str61-84200
                Field Case, Str57-8400
                Field Coil, Str59-8400-1
                Nut85-2401
                Pin, Str76-84808SHAFT, DRIVE
                Pole Shoe, Str58-8400
                Repair Kit, Soln66-84202
                Screw85-1504POLE SHOE
                Small Parts Kit, Str
                Spring, Brush, Str69-84700
                Washer, Lock84-4402
        Bearing, Ball6-103-4ARMATURE, DE
        Bearing, Ball6-200-4ARMATURE, CE
        Bearing, Ball6-105-2SHAFT, DRIVE
        Brush Holder Assy, Str69-8400-1
        Brush, Str68-8401FIELD COIL
        Brush, Str68-8400BRUSH HOLDER
        Collar, Stop, Str76-84806DRIVE, STR
        Drive, Str54-8402
        Field Case Assy, Str57-84200
        Frame, CE, Str52-8401
        Frame, CS, Str53-8401
        Frame, Drive, Str53-8402SHAFT, DRIVE
        Gasket, Str71-84100FRAME, CS
        Housing, DE, Str51-8405
        Nut TERMINAL, MOTOR, SOLENOID
        Nut85-2307SHIFT LEVER
        O-Ring71-84500FRAME, CE
        O-Ring71-82502SCREW, BRUSH HOLDER
        Pin, Str76-84803FRAME, CS
        Plate, Str76-84300HOUSING, DE
        Plug, Str71-84101HOUSING, DE
        Retaining Ring, Str76-84807DRIVE, STR
        Screw85-1332BRUSH HOLDER
        Screw85-1330HOUSING, DE
        Screw85-1331SOLENOID
        Screw85-1327SHIFT LEVER
        Screw85-1205BRUSH, GRD
        Screw85-1205BRUSH, INSULATED
        Shaft, Drive76-84800
        Shift Lever55-8400
        Spring, Brush, Str69-84700
        Switch, Solenoid66-8404
        Thru Bolt85-1328
        Washer, Plain84-4306SCREW, SHIFT LEVER
        Washer, Spacer85-4501FRAME, CS
        Washer, Spacer85-7500FRAME, CS
        Washer, Spacer85-4502FRAME, CS
