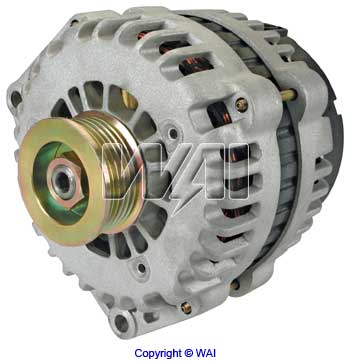

WAI 1-2419-21DR Alternator

WAI 1-2419-21DR Alternator

Alternator - Delco AD244 Series
130-145 Amp/12 Volt, CW, 6-Groove Pulley, 12:00 Plug Clock

Post Buying Request Connecting Buyers Width China Suppliers

Big Picture

Similar Products

600000167310: MAGNETI MARELLI 600000167310 Alternator

ADN353: AUTOTEAM ADN353 Alternator

DRB3041: DELCO REMY DRB3041 Alternator

2040350.0: SANDO 2040350.0 Alternator

115387: HC-Cargo 115387 Alternator

59212958: ARTEC 59212958 Alternator

EF34404: EDR EF34404 Alternator

20257N: WAIglobal 20257N Alternator

T511A41: NPS T511A41 Alternator

28-3968: ELSTOCK 28-3968 Alternator

IA0889: AES IA0889 Alternator

11.1556: LAUBER 11.1556 Alternator

配件名称:	WAI编号:	零件所在位置:
Bearing, Ball	6-202-4	FRAME, SRE
Diode, Neg
Diode, Pos	32-1060100
Heat Sink, Neg
Heat Sink, Pos
Shaft, Rotor
Terminal Block, Alt
Terminal, Battery, Alt	46-1191
Bearing, Ball	6-303-4	FRAME, DE
Brush Holder, Alt	39-1212
Brush, Alt	38-119	NEGATIVE
Brush, Alt	38-120	POSITIVE
Cap, Alt	39-1505
Frame, DE, Alt
Frame, SRE
Rectifier	DR4402HD
Regulator, Alt	D200XHD
Retainer, Bearing, Alt		FRAME, DE
Rotor	28-158
Slip Ring, Rotor	28-1860
Tolerance Ring	46-1572
Bearing, Ball	6-202-4	FRAME, SRE
Brush Holder Assy, Alt	39-112
Cover, Alt	46-1707
Cover, Alt	46-1707	BEARING, BALL, FRAME, SRE
Cover, Alt	46-1413	FRAME, SRE
Frame, DE, Alt	21-185-1
Frame, SRE	22-168
Insulator, Alt	42-1320	TERMINAL, BATTERY, INSIDE
Insulator, Alt	42-1319	STATOR
Insulator, Rect	42-1107
Nut	84-2700
Nut	84-2700	PULLEY
Pulley	24-1272
Reg, Rect Assy
Rotor	28-158
Screw	85-1220	BRUSH HOLDER
Screw	85-1220	RECTIFIER
Screw	85-1220	REGULATOR
Spacer, Alt	46-1573	TERMINAL, BATTERY
Spacer, Alt	46-1621	SHAFT, ROTOR
Spacer, Alt	46-1621	SHAFT, ROTOR, DE
Stator	27-146
Stator	27-147
Thru Bolt	84-1371
02Alternator	1-2419-21DR
03Alternator	1-2419-21DR
