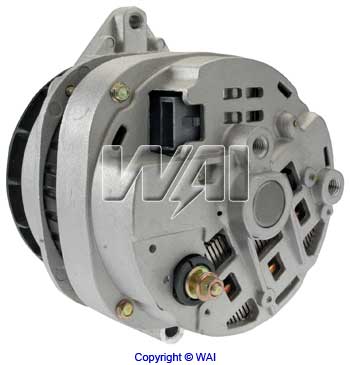

WAI 1-2170-41DR Alternator
Alternator - Delco CS144 Series
140 Amp/12 Volt, CW, 6-Groove/56mm OD Pulley, 10:30 Plug Clock | 配件名称: | WAI编号: | 零件所在位置: |
| Bearing, Needle Roller | 8-122-3 | FRAME, SRE |
| Sleeve, Packaging | 89-916 | |
| Adapter, Tester | VRC101-27 | |
| Bearing, Ball | 6-303-4 | FRAME, DE |
| Brush Holder, Alt | 39-1207 | |
| Brush, Alt | 38-115 | |
| Brush, Alt | 38-117 | |
| Case, Reg | | |
| Compound, Sleeve Retain | 89-214 | |
| Frame, DE, Alt | 21-141 | |
| Frame, SRE, Blank | | |
| Heat Sink, Neg | | |
| Heat Sink, Pos | | |
| Pin, Alt | 39-1501 | |
| Race, Bearing | 8-121-3 | |
| Retainer, Bearing, Alt | 46-1509 | FRAME, DE |
| Screw | 84-1212 | |
| Slip Ring, Rotor | 28-1855 | |
| Spacer, Alt | 46-2602 | |
| Spring, Brush, Alt | 39-1701 | |
| Terminal Block, Alt | | |
| Brush Holder Assy, Alt | 39-108-3 | |
| Capacitor | 46-1104 | |
| Connector, Alt | 46-1310 | RECTIFIER TO REGULATOR |
| Cover, Alt | 46-1458 | BRUSH |
| Fan, Alt | 25-111 | |
| Frame, DE, Alt | 21-141 | |
| Frame, SRE | | |
| Frame, SRE | 22-133 | |
| Insulator, Alt | 42-1106 | FRAME, SRE |
| Insulator, Alt | 42-1311 | |
| Nut | 84-2700 | PULLEY |
| Nut | 85-2301 | TERMINAL, BATTERY |
| Nut | 84-2200 | RECTIFIER |
| Pulley | 24-1255-3 | |
| Rectifier | DR5179 | |
| Regulator, Alt | D445XHD | |
| Rotor | 28-133 | |
| Screw | 84-1212 | RECTIFIER |
| Screw | 84-1205 | CAPACITOR & RECTIFIER |
| Screw | 84-1225 | BRUSH HOLDER |
| Screw | 84-1226 | RECTIFIER |
| Screw | 84-1226 | REGULATOR |
| Spacer, Alt | 46-1619-1 | ROTOR |
| Spacer, Alt | 46-1617-1 | FAN |
| Spacer, Alt | 46-1601-1 | PULLEY |
| Stator | 27-133 | |
| Terminal, Battery, Alt | 46-1189 | |
| Thru Bolt | 84-1304 | |
| Washer, Lock | 84-4606 | PULLEY |
