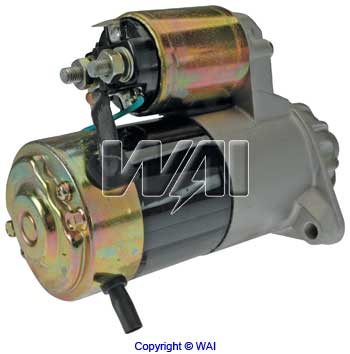

WAI 2-1148-MI Starter

WAI 2-1148-MI Starter

Starter - Mitsubishi PMGR
1.4kW/12 Volt, CW, 8-Tooth Pinion
Post Buying Request Connecting Buyers Width China Suppliers
Big Picture

Similar Products

3099

CEVAM 3099 Starter

IS1261

AES IS1261 Starter

SS680

WAIglobal SS680 Starter

440444

ALANKO 440444 Starter

112533

HC-Cargo 112533 Starter

003-C117

ASHIKA 003-C117 Starter

S511972

BTS Turbo S511972 Starter

6040170.0

SANDO 6040170.0 Starter

EF14883

EDR EF14883 Starter

913469

EDR 913469 Starter

S5172

AS-PL S5172 Starter

S512226

BTS Turbo S512226 Starter
     配件名称:WAI编号:零件所在位置:
        Armature, Str61-8316
                        Brush, Str68-8315
                        Bushing, Str GEAR, STATIONARY
                        Bushing, Str62-83304GEAR, PLANETARY
                        Bushing, Str62-83301GEAR, PLANETARY
                        Bushing, Str62-83302SHAFT, PLANETARY
                        Collar, Stop, Str76-1800
                        Contact, Movable, Soln
                        Contact, Stationary, Sol66-83350BATTERY
                        Contact, Stationary, Sol66-83350MOTOR
                        Lead, Wire, Soln
                        Nut85-2404CONTACT, STATIONARY, BATTERY
                        Nut85-2404CONTACT, STATIONARY, MOTOR
                        Retaining Ring, Str76-1801
                        Washer, Crimp85-9401CONTACT, STATIONARY, BATTERY
                        Washer, Crimp85-9401CONTACT, STATIONARY, MOTOR
                        Washer, Sealing CONTACT, STATIONARY, BATTERY
                        Washer, Sealing CONTACT, STATIONARY, MOTOR
                Bearing, Ball6-608-2ARMATURE, REAR
                Brush Set, Str
                Bushing, Str62-83300HOUSING, DE
                Cap Assy, Soln66-83205
                Contact Assy, Movable66-83701
                Drive, Str54-8313
                Gasket, Soln CAP
                Gear, Planetary76-83822
                Gear, Stationary76-83810
                Grommet, Str
                Magnet, Str NORTH POLE
                Magnet, Str SOUTH POLE
                Pad, Shift Lever
                Plug, Expansion, Str
                Plug, Str
                Retainer, Str MAGNET
                Screw BRUSH HOLDER
                Screw SOLENOID
                Shaft, Planetary
                Shift Lever
                Spring, Brush, Str69-83702
                Spring, Brush, Str69-83701
                Stop Collar Kit, Str
                Washer Kit, Str SHAFT, PLANETARY
                Washer, Thrust ARMATURE, CE
        Ball, Steel, Str76-2812SHAFT, PLANETARY
        Brush Holder Assy, Str69-8308-1
        Brush, Str68-8312
        Field Case Assy, Str57-83209
        Frame, CE, Str
        Housing, DE, Str
        Screw Kit, Str
        Seal, Str71-83100GEAR, STATIONARY
        Shaft & Drive Assy
        Shift Lever55-8306
        Switch, Solenoid66-8325
        Thru Bolt85-1317
